Automotive Neeg nrog caij Tsheb Hniav Fuses

1-1-removebg-preview

Dissmann^® Loj Automotive hniav fuseDFN-E -40rated voltage: DC80V, ntsuas tam sim no: 40A, tawg peev xwm: DC1000A.

DFN-E SeriesAutomotive hniav fusesRated voltage: 80VDC, ntsuas tam sim no: 20A-60A, qhov ntev thiab kev ua tau zoo raws li UL248-13, ISO8820, kev tiv thaiv ib puag ncig ua raws li European Union thiab Tuam Tshoj RoHS cov lus qhia, thiab nta me me, tsis siv hluav taws xob tsawg, thiab muaj peev xwm tawg tau zoo, muaj kev co zoo thiab nplaim taws retardancy. Cov automotive blade fuses no muaj feem xyuam rau cov ceg tiv thaiv sab hauv, UPS, kev sib txuas lus hluav taws xob luv luv thiab kev tiv thaiv cov khoom siv hluav taws xob hauv tsheb.

Specifications ntawm DFN-E Series Automotive Hniav Fuse

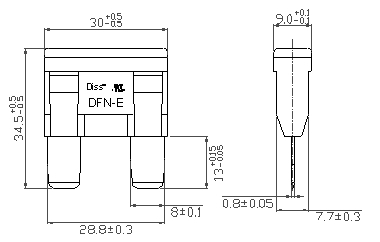

1.Shape thiab mounting qhov ntev ntawm lub fuse:

Low Voltage 80VDC 40A Car Fuse Fast Acting L Size Automotive Blade Car Fuse

2.Tam sim no tus yam ntxwv nkhaus ntawm DFN-E Series L Loj hniav fuse:

Low Voltage 80VDC 40A Car Fuse Fast Acting L Size Automotive Blade Car Fuse

3.Kev ua tau zoo ntawm lub fuse:

Test yam khoom tam sim no (A)	Tam sim no	Lub sijhawm tsawg kawg nkaus	Lub sijhawm siab tshaj plaws
110 feem pua	20A-60A	360000s	-
150 feem pua	20A-60A	-	1800s
200 feem pua	20A-60A	2s	60s
350 feem pua	20A-60A	0.20s	7s
600 feem pua	20A-60A	0.040s	1s

4.Fuse qauv kev faib tawm raws li qhov ntsuas tam sim no:

Qauv	Khoom code	Rated tam sim no A	I²t (A² Sec)	Voltage poob mV	Pigment
DFN-E	DFN-E -20	20	3500	100	黄色 (Yellow)
	DFN-E -30	30	8200	97	绿色 (ntsuab)
	DFN-E -40	40	14200	93	橙色 (txiv kab ntxwv)
	DFN-E -50	50	22500	90	红色 (liab)
	DFN-E -60	60	23000	95	蓝色 (Blue)

Yuav ua li cas xaiv tus qauv zoo ntawm DFN-E Automotive Blade Fuse:

Koj tuaj yeem xaiv lub tsheb zoohniav fuserau koj qhov project raws li qhov ntsuas tam sim no, xa peb cov khoom code kom tau txais cov lus hais sai. Yog hais tias koj qhov project yuav tsum tau customized automotive fuses, koj tuaj yeem qhia peb cov kev cai tshwj xeeb ntawm cov khoom koj xav tau, thiab peb yuav muab kev daws teeb meem rau koj hauv 48 teev.

Vim li cas koj xaiv peb cov khoom siv automotive hniav fuse?

1.Tsom mus rau kev tsim thiab kev loj hlob ntawm fuse khoom rau 20 xyoo:
Shenzhen Deer Electronic (Dissmann Fuse) yog National High-Tech tuam txhab tau tsim nyob rau hauv 2000 los ntawm Senior Engineers Team. Cov engineers yog lub luag hauj lwm rau cov khoom 'R & D nyob rau hauv nto moo tuam txhab uas muag, reorganized thiab nrhiav tau Shenzhen Deer nyob rau hauv 2005. tsom rau R & D thiab ntau lawm tam sim no limiting Fuses. Tam sim no peb tau txais 4 Patents ntawm Invention ntawm Tuam Tshoj thiab 12 Patents rau Utility Model.
Low Voltage 80VDC 40A Car Fuse Fast Acting L Size Automotive Blade Car Fuse
2.Txhua yam khoom siv fusetau raug soj ntsuam nruj me ntsis thiab muaj kev ntseeg tau zoo, thiablos ntawm UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS ntawv pov thawj.
