Tsheb Automotive Hniav Fuse

32VDC Hniav Hom Automotive Tsheb Fuse Accessories

1.Product Basic Information:

(1) DFN-A series fuse, qhov ntev thiab kev ua tau zoo: GB13539, IEC60269, UL248

(2) Ntau yam tam sim no: 1A-40A

(3) Voltage: 32VDC

(4) Lub peev xwm tawg: DC1000A

(5) UL Daim ntawv pov thawj: E496054

2.Product Application:

Qhov DFN series fuse no haum rau kev siv tsheb hauv kev lag luam, thiab tuaj yeem siv ua hluav taws xob tsheb tsav lub zog, lub zog hloov hluav taws xob, lub zog cia thiab lub roj teeb hluav taws xob, lub zog cia luv luv thiab tiv thaiv kev tiv thaiv ntawm cov capacitors, inverter controllers, chargers, MSDs, xov hlau thiab lwm yam khoom siv tsheb thiab khoom siv.

3.Cov khoom siv:

4. Mark:

4.1 Cov lus qhia tshwj xeeb (rated tam sim no, ntsuas hluav taws xob) ntawm lub plug-in fuse yog luam tawm ntawm lub cev, thiab nws cov ntawv tsis tuaj yeem ploj mus thiab pom meej thiab pom tau yooj yim.

4.2 Qhov ntsuas tam sim no yog raws li hauv qab no:

5.Mounting thiab soldering tej yam kev mob

5.1 Cov khoom no yog nruab nrog lub rooj tshwj xeeb mounting, thiab nws tsis pom zoo kom nruab los ntawm vuam. Yog tias koj xav siv txoj kev vuam, koj yuav tsum sab laj nrog peb lub tuam txhab rau txoj kev ntim khoom.

5.2 Yog tias welding yuav tsum tau siv, cov kev pom zoo welding yog raws li hauv qab no:

5.2.1 yoj soldering kub: 260 ± 5 degree Vuam lub sij hawm: 5-10 秒

5.2.2 tes soldering kub: 350 ± 10 degree Vuam lub sij hawm: 5-10 vib nas this

Nws raug nquahu kom siv 60W qhov kub thiab txias soldering hlau rau soldering.

Nco tseg: Cov ntaub ntawv saum toj no tsuas yog siv rau kev siv xwb, thov xa mus rau koj tus kheej cov ntaub ntawv sim thaum siv nws.

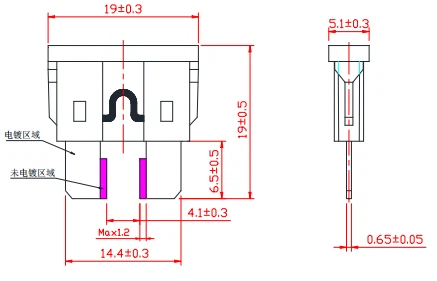

6.Product Dimension:

Nqe Lus Nug: Tus nqi tso tawm txhua xyoo ntawm lub tsheb hniav fuses yog dab tsi?

Teb: Peb yuav maj mam muab tso rau hauv mechanized ntau lawm, txhua xyoo tso zis tus nqi phiaj yog 4.5 lab pcs.

Dissmann Fuses chaw tsim tshuaj paus, nrog 20 xyoo kev paub, kev ntseeg siab thiab kev sib tw zoo, nqe thiab kev pabcuam, thov hu rau peb kom paub ntau ntxiv.
