Hluav Taws Xob Fais Fais Fais Fais Fais Fais Fais Fais Fais Distribution Fuse Blocks
Thawv Dimension: L.274 * W.225 * H.230mm
Inner Box Dimension: L.225 * W.140 * H.50mm
Xa kev nug
Product Details ofHluav Taws Xob Fais Fais Fais Fais Fais Fais Fais Fais Fais Distribution Fuse Blocks

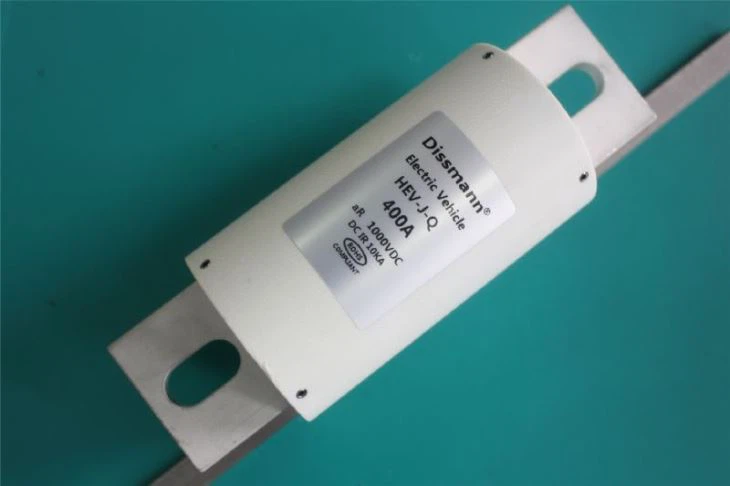

HEV-J-Q/1000VDC/1000VAC los yog qis dua
Rated Tam sim no | 5A-800A | Interrupting Peev Xwm | DC 20 KA / AC 50 KA |
Rated Voltage | 1000VDC / 1000VAC | Lwm Lub Peev Xwm | |
Daim ntawv pov thawj | UR, UL (ua ntawv thov) | Nplaim Retardancy | UL94 -V0 (Tsis yog-flammable) |
Hom kev tiv thaiv | aR | Kev tiv thaiv ib puag ncig | RoHS, Reach |
Ntim:
Model: HEV-P-Q-HT3-300A
Carton Label:
Qhov hnyav: 246 ± 5g
Thawv Dimension: L.274 * W.225 * H.230mm
Inner Box Dimension: L.225 * W.140 * H.50mm
Net Nyhav / Carton: 12.3kg
Qhov hnyav tag nrho / Carton: 13.5kg
Thawv Loj: 14180cm3
Cov khoom tsim nyogcov ntaub ntawv:
l Tshwj xeeb yog siv rau luv luv - Circuit Court tiv thaiv fuses ntawm lub tsheb fais fab thiab hybrid electric tsheb.
l 750V DC fuse tshwj xeeb uas tsim los rau cov tsheb hluav taws xob ntshiab thiab hybrid hluav taws xob tsheb fais fab roj teeb.
l Muab lub fuse puag tshwj xeeb rau qhov hnyav ib puag ncig ntawm lub tsheb.
l Bolt installation Fast Fuse, Dimension thiab kev ua tau zoo raws liGB13539, IEC60269, UL248
l Rated qhov hluav taws xob: AC /DC700Vlos yog qis dua（IEC 750V (UL)
l Rated Tam sim no:5-800A
l Tiv thaiv qib:aR; Breaking peev:AC100 dc,ua20k ua(Lub sij hawm tsis tu ncuaTsawg dua los yog sib npaug li 15ms )
l Ua raws li EU thiab Tuam Tshoj RoHS cov lus qhia.
l Muaj feem xyuam rau zaus converter, rectifier, inverter, ntau hom fais fab mov thiab lwm yam khoom siv semiconductor, thiab lub hwj chim roj teeb, hluav taws xob lub cev muaj zog, capacitor, cable thiab khoom siv los yog cov khoom siv.'s luv-circuit thiab rov qab- tiv thaiv.
Cov khoom siv anatomy
Cov khoom siv
Cov cuab yeej kuaj
Cov khoom siv ntau lawm
Peb Cov Ntawv Pov Thawj
Lo lus nug:Kuv xav siv plaub lub ntsuab 9.7 "Flexible LED Strips, txuas rau ib qho ntawm koj lub LED Round Rocker Switches. Kos lub 12v qhov los ntawm tapping rau qhov qhib rau hauv kuv lub thawv tsav tsheb sab fuse. Kuv xav tau dab tsi amp loj fuse rau plaub lub teeb thiab hloov?
Teb:3 lossis 5 amp yuav zoo xwb.
Lo lus nug:Kuv tau txais 1 channel cov chaw taws teeb tswj, ntawm daim duab kab qhia pom tias tus txais muaj lub fuse tab sis tsis tau hais txog dab tsi amp fuse siv. Cov chaw taws teeb tswj kev hloov pauv uas kuv tau txais muaj qhov tso zis ntawm 6 amp max, txuas ncaj qha mus rau ib khub ntawm Trojan T-105 (sib txuas ua ke kom tau txais 12 VDC rau kev siv teeb pom kev zoo) yog qhov kev nyab xeeb siv 5 amp fuse. Ua tsaug.
Teb:Lub fuse loj yog txiav txim los ntawm tus nqi ntawm amps koj lub teeb lossis cov khoom yuav rub tawm . 5 yuav tsum zoo rau rooj plaub.
Lo lus nug:Kuv qhov teeb tsa tsuas yog siv 230 mA. Kuv puas tseem xav tau lub fuse? Yog tias muaj qhov twg kuv yuav tsum tau txais?
Teb:Yog, tuav 2 amp.
Lo lus nug:Yog tias kuv khiav lub hwj chim rau lub teeb dome, kuv puas xav tau lub fuse tseem?
Teb:Tsis muaj.
