HEV-PQ / 750VDC / 690VAC

Rated Tam sim no	5A-800A	Interrupting Peev Xwm	DC 20 KA / AC 50 KA
Rated Voltage	750VDC / 690VAC	Lwm Lub Peev Xwm
Daim ntawv pov thawj	UR, UL (ua ntawv thov)	Nplaim Retardancy	UL94-V0 (Tsis yog-flammable)
Hom kev tiv thaiv	aR	Kev tiv thaiv ib puag ncig	RoHS, Reach

Ntim:

Model: HEV-PQ-HT3-300A

Carton Label:

Qhov hnyav: 246 ± 5g

Thawv Dimension: L.274 * W.225 * H.230mm

Inner Box Dimension: L.225 * W.140 * H.50mm

Net Nyhav / Carton: 12.3kg

Qhov hnyav tag nrho / Carton: 13.5kg

Thawv Loj: 14180cm³

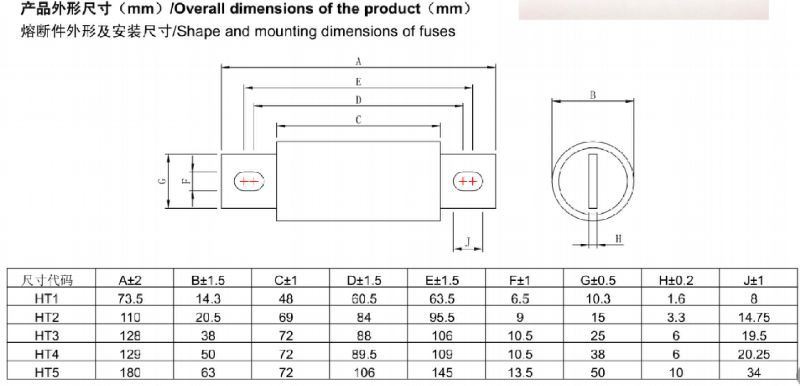

Product anatomy

Cov khoom siv

Cov cuab yeej kuaj

Cov khoom siv ntau lawm

Peb Cov Ntawv Pov Thawj

Nqe Lus Nug 1: Koj qhov fuses muaj qhov zoo li cas?

Teb: Muaj kev cuam tshuam tsis zoo, qis kub nce, qis zog noj, ruaj khov thermal tsis kam, qis derating, Tsawg attenuation nyob rau hauv qhov kub thiab txias.

Nqe Lus Nug 2: Koj puas tuaj yeem ua OEM rau cov neeg siv khoom?

Teb: Yog, paub meej, peb tuaj yeem ua OEM Fuses raws li koj xav tau.

Dissmann Fuses chaw tsim tshuaj paus, nrog 20 xyoo' kev paub, kev ntseeg siab thiab kev sib tw zoo, tus nqi thiab kev pabcuam, thov hu rau peb kom paub ntau ntxiv.

Cim npe nrov: high voltage fuse hom, Suav teb, manufacturers, lwm tus neeg, Hoobkas

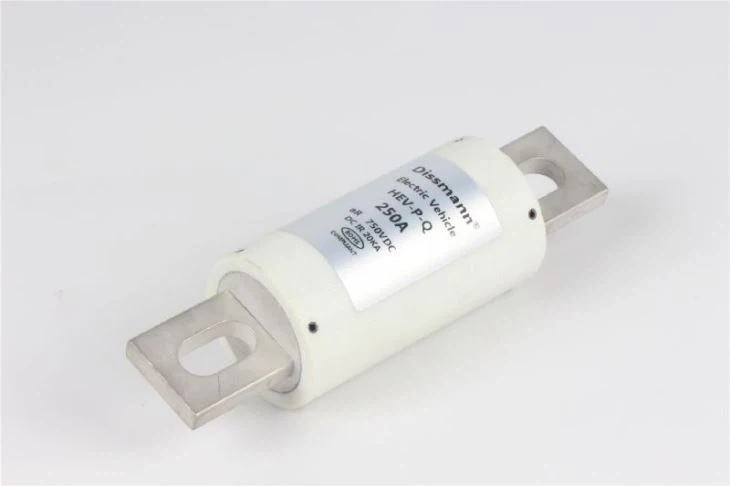

High Voltage Fuse Hom
