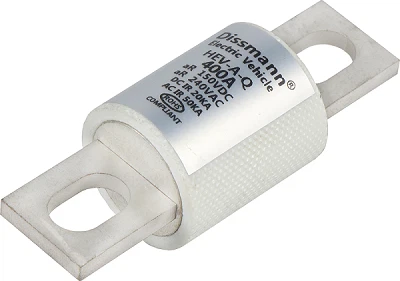

Kev kub ceev Fuse
Kev ntsuas tam sim no: 40A-800A
Kev ntsuas hluav taws xob: DC 1000V
Lub peev xwm tawg: DC50000A
Installation: Bolt down
Daim ntawv thov: roj teeb muaj peev xwm, cov khoom siv hluav taws xob hloov pauv, cov neeg tiv tauj, cable thiab lwm yam auxiliarycircuits.
If any further demand,pls feel free to contact by email:holly@delfuse.com or whatsapp by 8618813915908
Xa kev nug

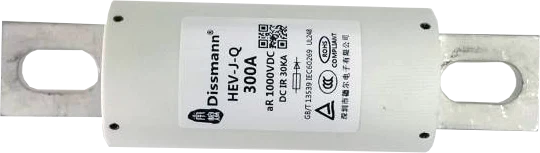

Product Details ofKev kub ceev Fuse
DC750V kev kub ceev fuse tsuas yog tsim los rau lub zog siab roj teeb them thiab kev tswj hwm hauv tsheb hluav taws xob
Daim ntawv thov
Lub Dissmann Fuses DC750V HEV-PQ fuse ua raws li GB13539, IEC60269, UL248, ua raws EU thiab Tuam Tshoj RoHS cov lus qhia. Cov khoom lag luam no yog round raj Bolt nruab kev sib txuas fuse, nrog me me, qis I²t, siab tawg peev xwm yam ntxwv thiab lwm yam ntxwv. Muaj feem xyuam rau zaus converter, rectifier, inverter, ntau yam khoom siv hluav taws xob thiab lwm yam khoom siv semiconductor, thiab cov roj teeb hluav taws xob, hluav taws xob lub cev muaj zog, capacitor, cable thiab khoom siv lossis cov khoom tiv thaiv luv luv thiab kev tiv thaiv rov qab. Cov khoom no muaj kev vibration zoo thiab nplaim retardant kev ua tau zoo. Haum rau kev vibration ib puag ncig daim ntawv thov xws li kev tsheb ciav hlau hla thiab tsheb tsav.
Specification
Bolt installation Fast Fuse, Dimension thiab kev ua tau zoo raws li GB13539, IEC60269, UL248
Rated Voltage: DC750V lossis qis dua
Rated Tam sim no: 40A-800A
Tiv thaiv qib: aR; Lub peev xwm tawg: DC50kA (Lub Sijhawm Tsis Muaj Tsawg dua lossis sib npaug li 15ms)
Product System Code
Dimension of HEV-PQ fuses
|
Dimension code |
A±2 |
B±1.5 |
C±1 |
D±1.5 |
E±1.5 |
F±1 |
G±0.5 |
H±0.2 |
J±1 |
|
HT 2 |
110 |
22 |
69 |
84 |
95.5 |
9 |
15 |
3.3 |
14.75 |
|
HT3 |
129 |
36.5 |
72 |
88 |
109 |
10.5 |
25 |
6 |
20.7 |
|
HT4 |
129 |
50 |
72 |
88.6 |
109 |
10.5 |
38 |
6 |
20.7 |
Khoom siv
|
Yam khoom |
Khoom siv |
|
Xaus kev sib cuag |
Tooj Alloy |
|
Fuse Lub Cev |
iav Fiber |
|
Filler |
Quartz xuab zeb |
FAQ:
Q: Cov qauv twg yog koj cov khoom tsim ua raws li?
A: Peb cov khoom raug tsim tawm raws li ISO9005 thiab IATF16949 daim ntawv pov thawj, thiab tag nrho cov khoom raug tshuaj xyuas thiab xa los ntawm peb lub tuam tsev tswj kev ua haujlwm zoo.
