DC1000V 800A High Voltage Automotive Fuse Rau Fais Tsheb Ua nyob rau hauv Suav teb
Dissmann®DC1000V 800A High Voltage Automotive Fuse rau Fais Tsheb
Specifications ntawm EV-JQ Series High Voltage Automotive Fuse
1.Dimensions ntawm EV-JQ series high voltage automotive fuse (mm):
Qauv | Loj Code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
EV-JQ | VJ 1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
VJ 2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
Daim ntawv ceeb toom:EV-JQ series high voltage automotive fuse muaj 4 qhov ntev rau qhov sib txawv ntsuas tam sim no.
2.Product ModelntawmEV-JQ series high voltage tsheb fuse:
Qauv型号 | Rated tam sim no额定电流A | I²t(A²s) | Kev siv fais fab 功率损耗 W | Loj Code 尺寸代码 | Nruab安装 | |
弧前 | 熔断 | |||||
EV-JQ-30 | 30 | 120 | 850 | 5.0 | VJ 1 | Mounting Bolt M8 pom zoo torque 11N·m 安装螺栓M8推荐扭矩11N·m |
EV-JQ-40 | 40 | 300 | 1700 | 7.5 | ||
EV-JQ-50 | 50 | 450 | 2500 | 10.0 | ||
EV-JQ-60 | 60 | 620 | 3600 | 12.5 | ||
EV-JQ-70 | 70 | 850 | 5600 | 14 | ||
EV-JQ-80 | 80 | 1100 | 6600 | 15.5 | ||
EV-JQ-90 | 90 | 1850 | 10600 | 17 | ||
EV-JQ-100 | 100 | 2300 | 12000 | 18 | ||
EV-JQ-125 | 125 | 3400 | 21000 | 20 | ||
EV-JQ-150 | 150 | 4800 | 25000 | 25 | ||
EV-JQ-175 | 175 | 9200 | 40000 | 30 | VJ 2 | Mounting Bolt M10 pom zoo torque 20N·m 安装螺栓M10推荐扭矩20N·m |
EV-JQ-200 | 200 | 15000 | 60000 | 34 | ||
EV-JQ-225 | 225 | 19000 | 105000 | 40 | ||
EV-JQ-250 | 250 | 23500 | 113000 | 43 | ||
EV-JQ-275 | 275 | 24800 | 128000 | 48 | ||
EV-JQ-300 | 300 | 26000 | 155000 | 52 | ||
EV-JQ-325 | 325 | 32700 | 175000 | 56 | ||
EV-JQ-350 | 350 | 40000 | 223000 | 60 | VJ3-1 | Mounting Bolt M12 pom zoo torque 28N·m 安装螺栓M12推荐扭矩28N·m |
EV-JQ-400 | 400 | 56000 | 290000 | 65 | ||
EV-JQ-450 | 450 | 78000 | 390000 | 80 | ||
EV-JQ-500 | 500 | 105000 | 490000 | 90 | ||
EV-JQ-600 | 600 | 165000 | 560000 | 105 | VJ3-2 | |
EV-JQ-800 | 800 | 420000 | 870000 | 175 | ||
Daim ntawv ceeb toom:Xaiv tus qauv tsim nyog rau koj qhov project los ntawm qhov ntsuas tam sim no.

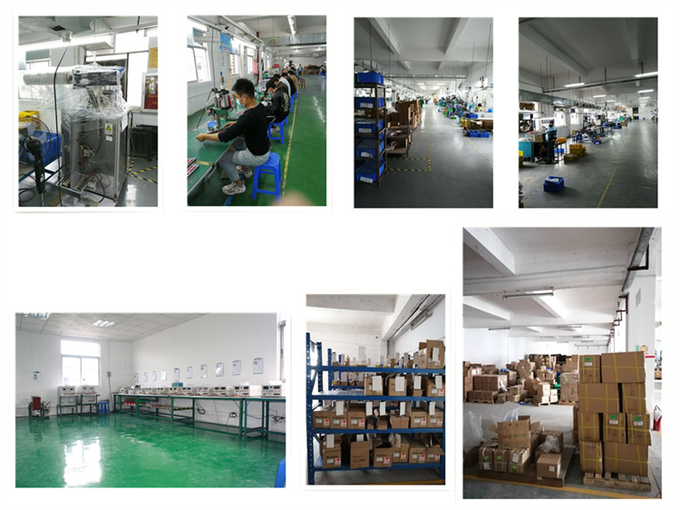

Qhov zoo ntawm peb lub Hoobkas raws li lub zog cia fuse Supplier:
1.Tsom mus rau kev tsim thiab kev loj hlob ntawm fuse khoom rau 20 xyoo:
2.Our fuse khoom tau ntawv pov thawj UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS ntawv pov thawj.
Zoo siab txais tos koj kom tau txais cov ntaub ntawv ntau ntxiv ntawm high voltage automotive fuse, Peb yuav muab cov kev pabcuam ceev thiab zoo rau koj thiab cov khoom siv fuse zoo.
