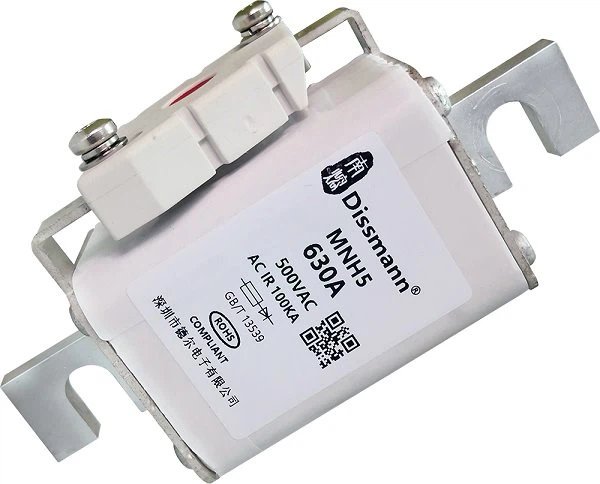

AC690V DC440V Ceramic MEV Fuse Nrog Qhov Ntsuas
Dissmann®AC690V DC440V Ceramic MEV Fuse nrog Qhov Ntsuas Ua nyob rau hauv Suav teb
MNH5
Dissmann ® MNH5 series fuses:
Cov qauv thiab kev ua haujlwm yuav tsum ua raws li GB13539, IEC60269 thiab UL248
Rated voltage: DC / AC lossis qis dua 800V
Rated tam sim no: 40A-630A; Kev tiv thaiv qeb: aR (IEC); Breaking peev: AC100KA, DC20kA (lub sij hawm tas li Tsawg dua lossis sib npaug li 10ms)
Ua raws li EU thiab Tuam Tshoj RoHS cov lus qhia
Ua tau raws li qhov yuav tsum tau muaj ntawm QC / T413, ISO8820 thiab JASOD622
Cov khoom no yog square tubular bolt mounted ceev fuse nrog me me ntim thiab siab tawg peev xwm. Nws muaj feem xyuam rau ntau qhov kub thiab txias, tuaj yeem tiv taus lub zog siab ntawm cov neeg kho tshuab kev co thiab kev cuam tshuam, qhov kub thiab txias cuam tshuam thiab muaj zog chemical load, thiab tsim nyog rau kev siv tsheb hauv kev lag luam. Nws tuaj yeem siv los ua luv luv Circuit Court, overload thiab thaub qab tiv thaiv ntawm lub tsheb fais fab tsav tsheb, lub zog hloov hluav taws xob, lub zog cia thiab lub zog roj teeb, lub zog cia capacitor, zaus hloov dua siab tshiab, charger, MSD, neeg xyuas pib thiab lwm yam khoom siv tsheb thiab khoom siv.
Yam khoom:
Qauv | Rated Tam sim no A | I2t(A2s) | Lub zog dissipation W | Loj code | |
ua ntej arc | tag nrho | ||||
MNH5-G500A | 500 | 975 | 2250 | 60 |
4
|
MNH5-G630A | 630 | 1732 | 4520 | 70 | |
MNH5-G800A | 800 | 3150 | 8725 | 90 | |
MNH5-G1000A | 1000 | 5665 | 15700 | 100 | |
MNH5-G1250A | 1250 | 12100 | 28300 | 110 | |
MNH5-AG500A | 500 | 975 | 2250 | 60 |
4a |
MNH5-AG630A | 630 | 1732 | 4520 | 70 | |
MNH5-AG800A | 800 | 3150 | 8725 | 90 | |
MNH5-AG1000A | 1000 | 5665 | 15700 | 100 | |
MNH5-AG1250A | 1250 | 12100 | 28300 | 110 | |
Dimension ntawm MNH5 series fuse:
Loj code | A (Max) | B±2.5 | C±1.5 | D±1.5 | E (Max) | F (Max) | K | H±0.2 | G±0.5 |
4 | 90 | 150 | 100 | 100 | 120 | 25 | 62±2.5 | 8 | 16 |
4a(500-1250A) | 90 | - | 100 | 100 | 120 | 30 | 84±3 | 6 | - |
Tam sim no tus yam ntxwv nkhaus
