Bolted Hom Fuse

Khoom taw qhia ntawm HEV-JQ fuse

Lub HEV-JQ fuse yog tsim los ntawm Dissmann, qhov fuse no tuaj yeem hloov Bussman FWJ series fuse.Qhov voltage yog 1000VDC, nrog rau ntau yam tam sim no los ntawm 100-800A, lub peev xwm tawg mus txog DC30KA hauv qab DC1000V.This HEV-JQ fuse feem ntau siv tau rau EV them pawg, qhov ua tau zoo tshaj plaws yog qhov qis I2t, thiab kev ntseeg siab siab uas ua raws li cov qauv hauv teb chaws.

Nta

Ua ntej, cov duab ntawm HEV-JQ fuse yog puag ncig lub raj thiab muaj nyob rau hauv bolted kev twb kev txuas, uas muaj cov yam ntxwv ntawm me me, ceev tshuab, tsis tshua muaj I2t, thiab siab reliability. cov khoom siv xws li EV charging chaw nres tsheb, lub zog faib hluav taws xob, lub zog hluav taws xob, lub zog cia system., nrog rau cov roj teeb hluav taws xob, lub cev muaj zog, cov khoom siv hluav taws xob, cov xov hlau thiab lwm yam khoom siv thiab cov khoom siv. Thirdly, Lub dimenison thiab kev ua tau zoo ntawm HEV-JQ fuse comform rau GB13539, IEC60269, UL248, pom zoo los ntawm TUV, UL daim ntawv pov thawj.

Khoom siv

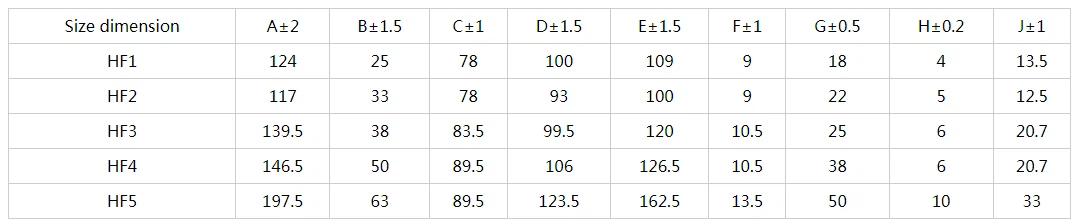

Dimension

Cov lus qhia ntawm kev xaiv lub fuse

Raws li peb cov kev paub txog kev muag khoom, feem ntau cov hauv qab no yuav tsum tau txiav txim siab thaum xaiv lub fuse rau kev tsim tshiab.

1.Ntawm kev khiav hauj lwm tam sim no.

2.Kev ua haujlwm voltage.

3. Ambient Kub.

4.Inrush Currents.

5.Maximum Fault Current.

6.Length ntawm lub sij hawm uas lub fuse yuav tsum qhib.

7.Maximum tso cai I²t.

8.Specific loj muaj

9. Daim ntawv pov thawj tus qauv

FAQ

Lus Nug: Yuav ua li cas txog koj lub sijhawm xa khoom?
Teb: Feem ntau, nws yuav siv li 7 mus rau 15 hnub ua haujlwm tom qab tau txais koj cov nyiaj them ua ntej.Lub sij hawm xa khoom tshwj xeeb nyob ntawm
ntawm cov khoom thiab qhov ntau ntawm koj xaj.
